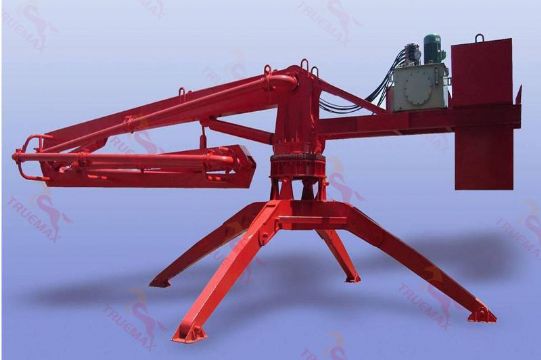

A mobile concrete placing boom can be put on any places that are rigid and flat according to job requirements. It needn't to be fixed while working, having excellent mobility.
1Features
1)The placing boom has a R-shaped boom assembly with three foldable sections, which can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes, columns, piles and other vertical structures without confined placement areas.
2)The boom assembly's luffing, folding/unfolding and swinging are carried out hydraulically with buttons.
3)Featuring compact structure, the placing boom can be lifted and transferred to any suitable places for concrete placement, such as floors, platforms, simply-structured racks or even trailers. It does not need to be fixed while working. In addition, it can be lifted off the placement sites when it is not needed, which leads to no disturbance to other jobs and easy maintenance.
4)The HG17M is well fit for the construction of different floors and for complicated jobsites without being influenced by the size and shape of floors.

Model HG17M
Horizontal reach (m) 17
Hydraulics output (kW) 5.5
Hydraulics pressure(MPa) 20
Rotation (Elevation angle) 360° (-2 - 84.4 )
Pipeline diameter (mm) 125
Total weight(t) Without counterweight 4.94
counterweight 2.1
